DF360

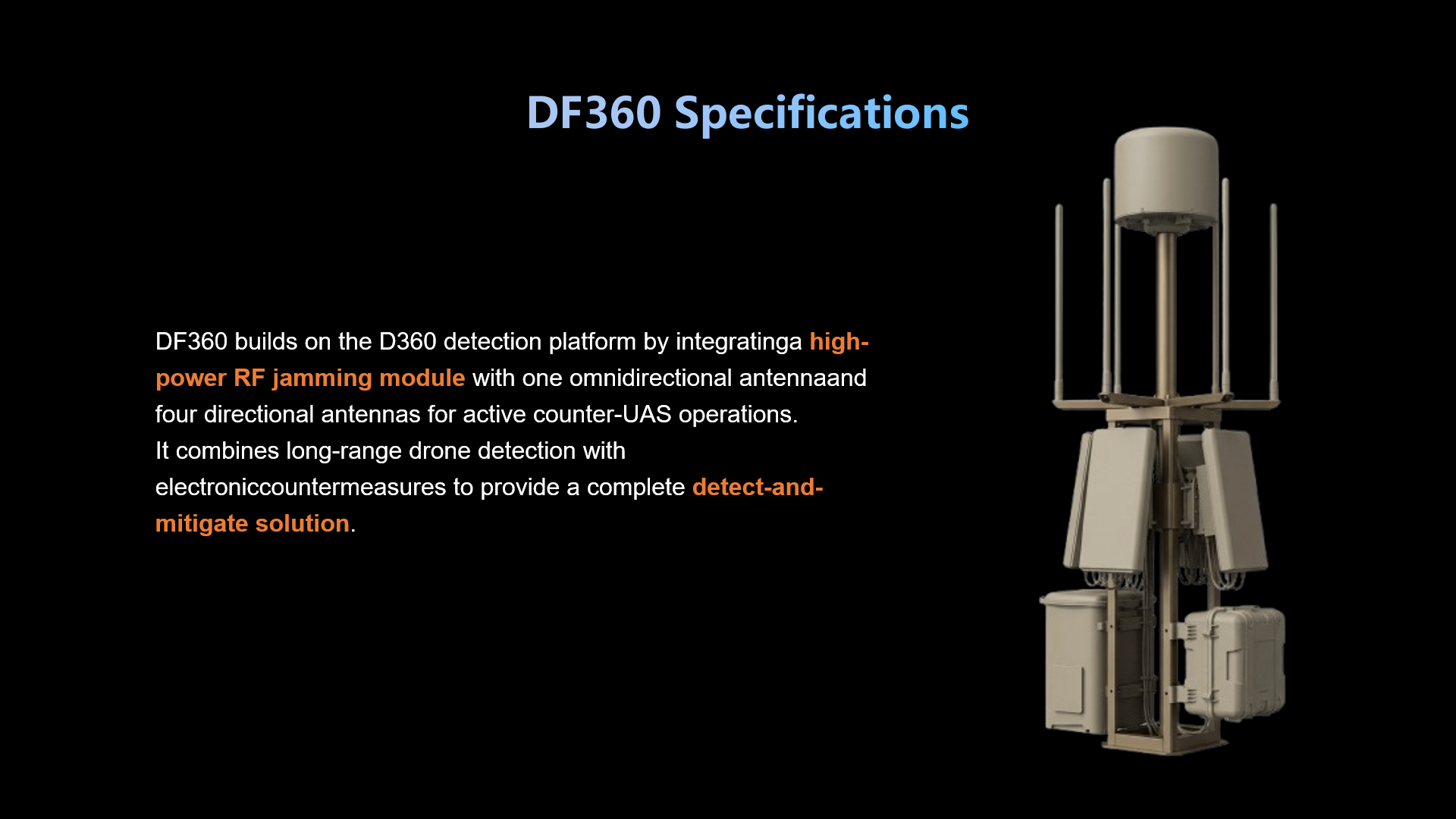

The DF360 is an integrated counter-UAS (Unmanned Aerial System) platform that evolves from the D360 by adding active neutralization capabilities. It serves as a comprehensive "detect-and-mitigate" solution, combining long-range surveillance with high-power electronic countermeasures.

Functions & Features

• Integrated Jamming: Unlike passive models, the DF360 integrates a high-power RF jamming module utilizing one omnidirectional and four directional antennas to disrupt drone control and GPS signals.

• Comprehensive Coverage: It monitors frequencies from 70MHz to 6GHz and provides targeted jamming across multiple bands, including 433MHz, 2.4GHz, and 5.8GHz.

• Rapid Response: The system boasts a fast interception response time of ≤2 seconds, ensuring immediate action against detected threats.

Advantages

• 360° Protection: It provides full-airspace situational awareness and mitigation, covering a detection radius of up to 10km and a jamming range of 2km.

• High Precision & Reliability: With a low false alarm rate (≤5%) and an azimuth accuracy of ≤5° (RMS), it ensures reliable targeting.

• Rugged Durability: Designed for harsh environments, it features an IP66 rating and operates in extreme temperatures ranging from -40°C to 70°C.
